Marine Fuel Injectors > EV6 fuel injector UPGRADE for Delphi Marine 17090304
EV6 fuel injector UPGRADE for Delphi Marine 17090304

The product you selected is currently unavailable.

Price: $450.00
Availability: in stock
Prod. Code: MM 17090304-766-8

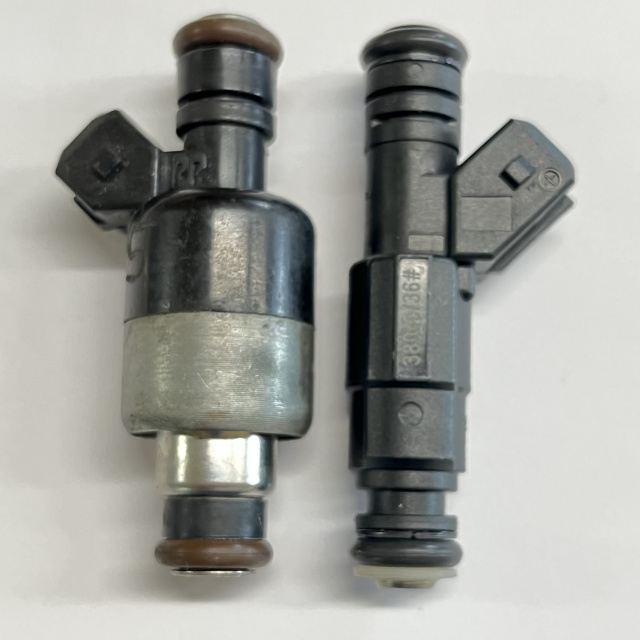

This Set of Upgrade of injectors will perform better than the original Units. They will solve the quality issues inherent in the original design. Original unit common problem include:

  • Internal corrosion due to inferior material used in the OE casting.
  • Sticking in the open position causing the engine to over fuel.
  • Electrical shortages causing total injector failure.

Since the connectors are the exact same as the OE units the flow matched set doesn't require any connector adapters. The four-orifice nozzle produces a much better spray pattern than the OE injectors. The modern internal design helps prevent these injectors from sticking, which is a common problem with the OE units. They are E85 compatible

O-Ring dimensions and the distance from the upper O-Ring and Lower O-Ring are the exact same as the OE injectors. Resistance is 16.5 OHMS compared to 15.0 OHM OE and compatible with the factory ECM

These injectors have been tested in the field and have produced extraordinary results in overall performance.  In addition, they solve all OE injector related issues.



Flow rates are as follows:

17090304

380cc per minute / 36 Lb/Hr.  at 43.5 psi fuel pressure

440cc per minute / 42 Lb./Hr. at 58 psi fuel pressure

Our Upgrade Replacement:

380cc per minute / 36 Lb/Hr.  at 43.5 psi fuel pressure

440cc per minute / 42 Lb./Hr. at 58 psi fuel pressure

All injectors carry 1 year replacement warranty from date of purchase.
